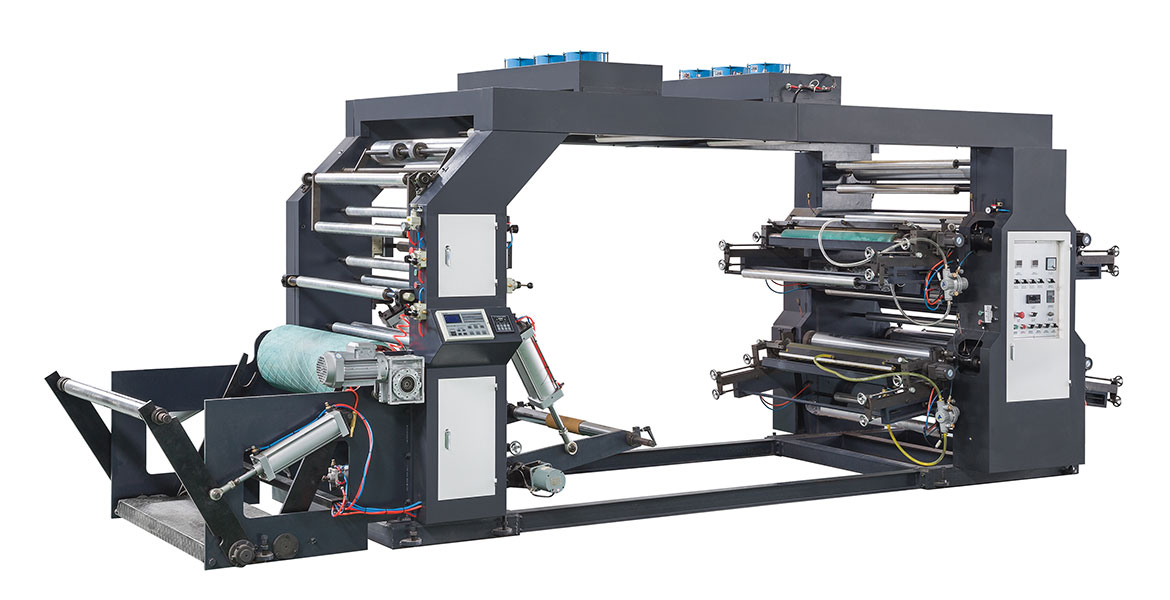

LT Multi-colors Flexo printing machine

LT Multi-colors Flexo printing machine

Unwinder -EPC -Auto tension -Printing -rewinder

Introduction:

This machine is suitable for printing such packing materials as polyethylene, polypropylene plastic bag, glass paper and roll paper, etc. And it is a kind of ideal printing equipment for producing paper packing bag for food, supermarket handbag, vest bag and clothes bag, etc.

Features:

1.using helical gear transmission, stable operation, low noise.
2.version and fall plate using pneumatic landing plate.
3.Deviation rectification control system of discharge automatic photoelectric sensor.
4.independent scraping knife scraping ink and automatic ink circulation system.
5.independent grouping type automatic ink mixing system, can be opened on demand, one or more groups of ink evenly
6.with ceramic anilox roller, high speed dot reproduction rate is high, screen printing layer is clear, three-dimensional feeling strong.
7.independent drying area, using central constant temperature control system and grouping control.

Technical Parameter:

Type

LT-4800

LT-41000

LT-41200

LT-41400

Printing Color

4 Color

4 Color

4 Color

4 Color

Max.Printing Width

750 mm

950 mm

1150 mm

1350 mm

Max.Material width

800 mm

1000 mm

1200 mm

1400 mm

Printing Length

200-1000 mm

200-1000 mm

200-1000 mm

200-1000 mm

Max.Printing Speed

80 m/min

80 m/min

80 m/min

80 m/min

Paper Thickness

30-350 gsm

30-350 gsm

30-350 gsm

30-350 gsm

Overprint Precision

±0.2 mm

±0.2 mm

±0.2 mm

±0.2 mm

Thickness of Plate

2.38 mm

2.38 mm

2.38 mm

2.38 mm

Total Power

13 kw

15 kw

15 kw

18 kw

Weight of Machine

4000kg

4500kg

5000kg

5500kg

Overall Dimension(cm)

450*190*245

450*210*245

450*230*245

450*260*245
