LFP-G Flat rope hand winding machine

Contact us

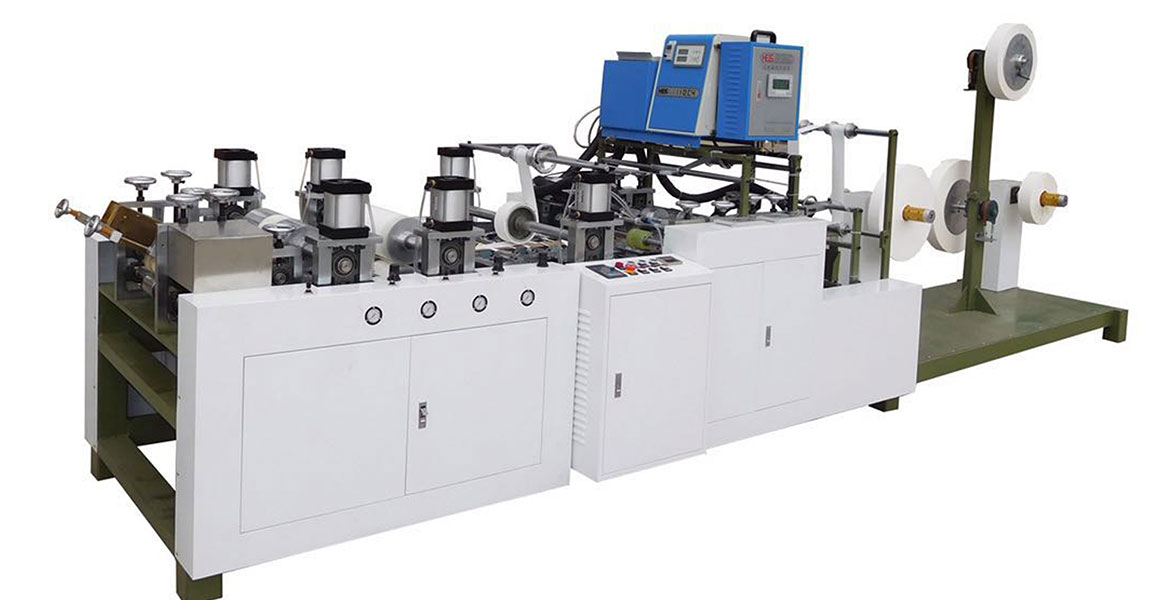

LFP-G Flat rope hand winding machine

Introduction:

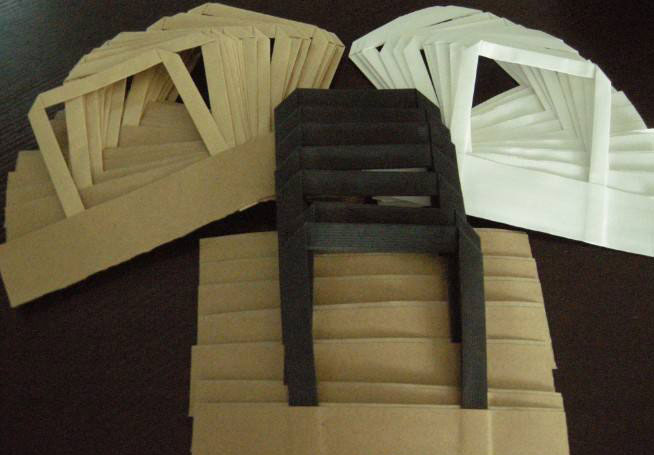

machine was developed specifically for the new generation of paper Handle Machine. This machine is sandwiched between two layers of kraft paper rope middle, after gluing, lamination, and then automatically cut into a single handle. Paper bag machine is the ideal complementary product lines.

Features:
1.use Hot-melt glue not falling.
2.easy to operate, fast.

 Technical Parameter:

Type LFP-G-1 LFP-G-2
Handle Spacing (W) 95 mm 92/107mm
Paper Board Length(L) 152 mm 190 mm
Paper Board Width(h) 40 mm
Paper Rope Width(D) 12 mm
Rope Height(H) 100 mm
Max.Speed 100 pcs/min
Paper Thickness 80-120 gsm
Max.Roll diameter 700 mm
Reel inner diameter 76 mm
Total Power 10 Kw
Weight of Machine 2800 kg
Overall Dimension(LxWxH) 5000×1500×1500 mm
