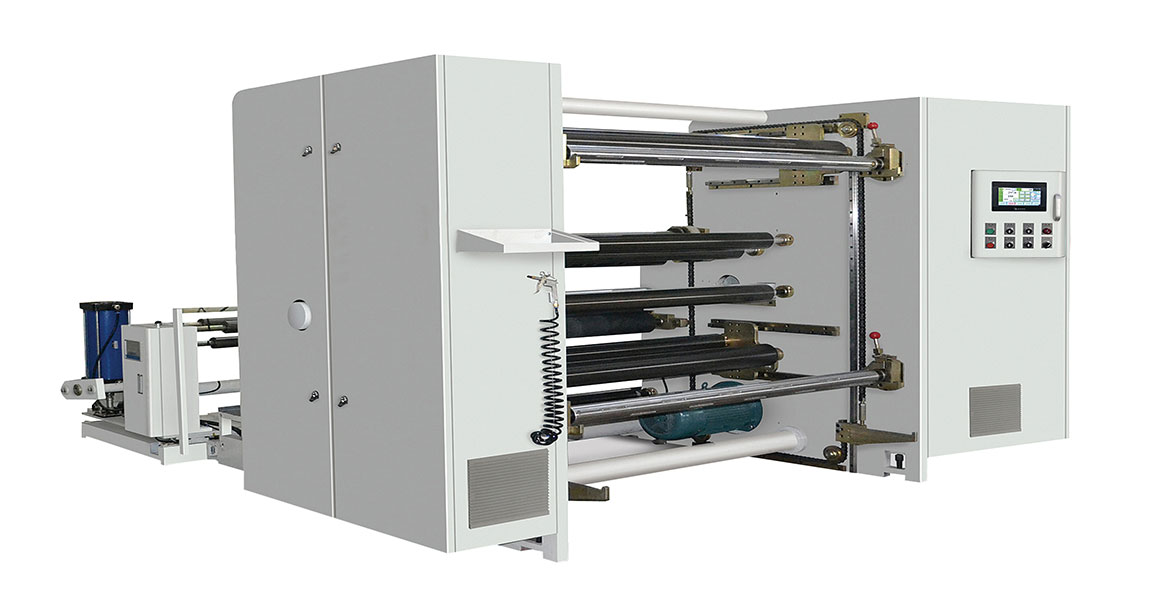

FQ-A Series Computer High-speed Slitting Machine

FQ-A Series Computer High-speed Slitting Machine

FQ-A Series Computer High-speed Slitting Machine



Working Flow chart

Unwinder paper rolls /film rolls --epc /auto tension -Slitting by long knive or round knives /rewinder paper roll or film roll

Introduction:

This machine suitable for slitting jumbo roll materials such as paper,aluminum foil,PVC, Plastic Film,Insulation Materials and Laminated Materials etc.
It is best slitting machine for Jumbo roll material in china. it is good use for paper roll slitting machine

Features:

1.Main engine frequency adjust speed,PLC touch screen control system, auto counter meter, auto machine stop when had alarm , auto tension control etc function.
2.Unwinding unit use auto air loading system(150#cylinder)
3.Rewinding use vector motor control tension,Unwinding use magnetic powder brake control tension

Technical Parameter:

Type

FQ-1300A

FQ-1600A

FQ-1800A

Max.Width of Unwinding

1300mm

1600mm

1800mm

Max.Diameter of Unwinding

1400mm

1400mm

1400mm

Min.Slitting Width

30mm

30mm

30mm

Max.Diameter of Rewinding

1000mm

1000mm

1000mm

Paper Thickness

30-300gsm

30-300gsm

30-300gsm

Machine Speed

350m/min

350m/min

350m/min

Total Power

22kw

26kw

35kw

Weight of Machine

3400kg

3800kg

4200kg

Overall Dimension

4500x3100x1900mm

4500x3400x1900mm

4500x3800x1900mm

Spare Parts :

Blades 5 pcs

Switches 3 pcs

Tool box 1 pcs

Manual book 1 pcs

Video 1 pcs
