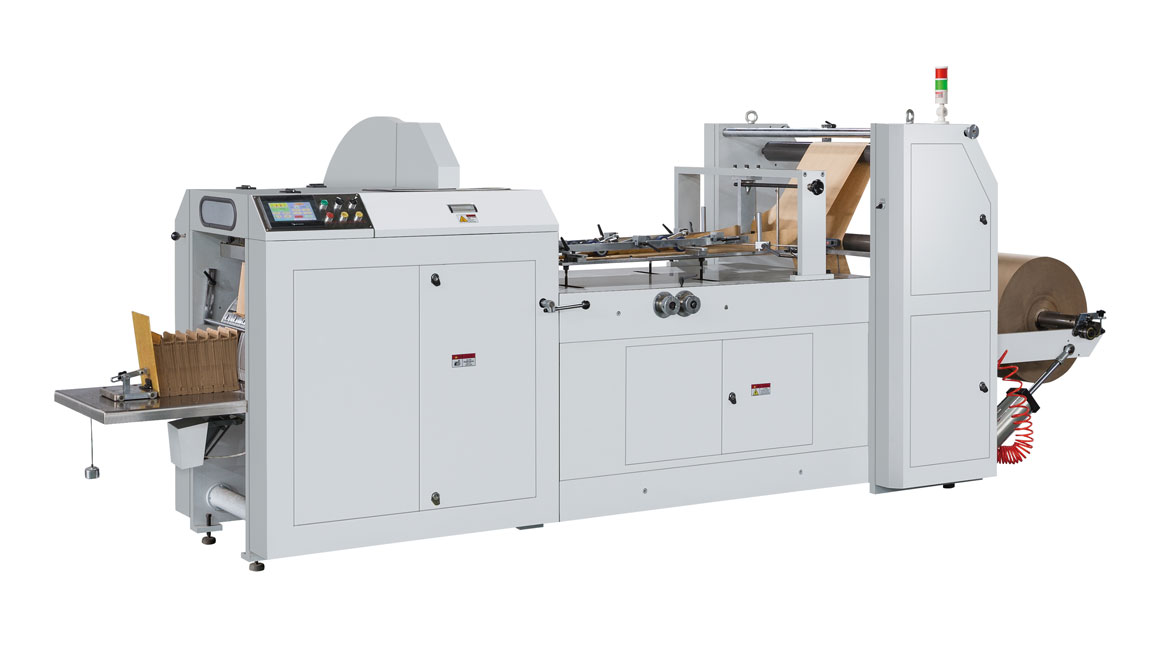

LMD-600 Automatic High Speed Food Paper Bag Making Machine

Working Flow Chart - Unwinder paper rolls feeding -epc -auto tension -Side Glue -Photocell-Forming tube-Gusset -Pulling paper -Cutting -V shape forming -Bottom glue -Finished v bottom paper bags

Controls bag length through the human-machine touch screen interface.Equipped with accurate servo motor drive, it makes the machine run steadily and efficiently.

Product Description

Introduction：

This paper bag machine forming the paper bag in one process from roll paper, edge folding, tube forming, cutting, gluing, bottom folding,bottom gluing and finishing bag Easy operation, low power consumption, high efficiency. It is an ideal machine for producing food bags like bread bags, KFC bags and Mcdonald’s bags.

Features：

1.The human-machine touch screen interface, the work condition can be shown in real- time.
2.Equipped with accurate servo motor drive, it makes the machine run steadily and efficiently.
3.Material lifting adopt pneumatic lift structure.
4.Double photoelectric sensor limit automatic correction control system and deviation rectification stability, energy saving, long life.
5.The machine has automatic counting system. The user can set a number to count.
6.Accurate color tracking system, color errors automatically shut down.

Paper bag structure

Technical Parameter：

Type	LMD-600
Cutting Length（C）	220-620 mm
Bag Length（L）	210-610 mm
Bag Width（W）	70-280 mm
Gusset Thickness（H）	0-120 mm
Standard Flap（P）	12-20 mm
Max.Speed	500 pcs/min
Paper Thickness	30-80 gsm
Paper Roll Width	220-700 mm
Max.Roll Diameter	1100 mm
Reel Inner Diameter	76 mm
Total Power	5 kw
Weight of Machine	2900kg
Overall Dimension(LxWxH)	4670×1550×1500 mm

Detailing Description

Man-machine interface touch screen
Adopt touch screen and PLC programmable control system, the work condition can be shown real time.Cooperate with the ultra precise double servo motor, the stability can be guaranteed.

Automatic counting system
The machine has automatic counting system. The user can set a number to count. When bag quantity meets the number, the bag will be jumped out like the picture shows.

Servo control system
Adopt Japanese original Yaskawa servo control system to realize high-speed and precise operation control.

Independent glue coating system
Independent glue coating system, the glue coating system can be run independently after the machine stops, avoiding the glue drying and not easy to clean. The glue tank is glued to the bottom to prevent glue from dripping.

The paper tube forming system
The integral tube forming adjustment structure can be adjusted at the same time on one side or both sides to improve work efficiency, reduce the scrap rate generated by the adjustment process, and save adjustment time and stability of adjustment.

Pneumatic paper reel lifting device
Pneumatic paper reel lifting device make paper reel changing easy. Press one switch and the paper reel will be lifted automatically. Avoid the personal injury. The pneumatic lifting system can make sure the stability of paper web feeding and avoid moving the feeding stand.
