Working Flow Chart - Unwinder paper rolls feeding -epc -auto tension -Side Glue -Window Film with Hot melt Photocell-Forming tube-Gusset -Pulling paper -Cutting -V shape forming -Bottom glue -Finished v bottom paper bags

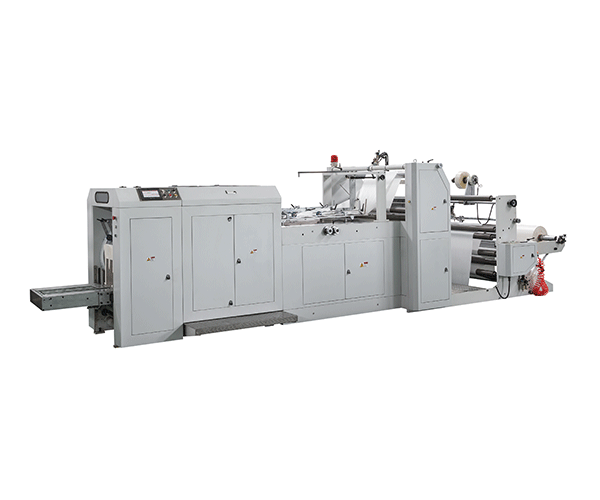

My company's latest research and development of new automatic high-speed paper bag machine from the roll paper to the Spray adhesive, Paste the film, piercing, the top of the glue, into a tube, cut bags, folding bottom, paste the finished product bag finished once. The new model is more convenient, more efficient and more stable, is the production of a variety of different paper bags, fast food bags, bread bags, medical bags, dried fruit bags, shopping bags, and so the ideal equipment for environmental protection paper bags.
1.Adopt touch screen and PC control system, the work condition can be shown real time.
2.Equipped with accurate servo motor drive, it makes the machine run steadily and efficiently.
3.Material lifting adopt pneumatic lift structure.
4.Automatic constant tension control system. The tension will be just right from beginning to end.
5.Double photoelectric sensor limit automatic correction control system and deviation rectification stability, energy saving, long life.
6.The machine has automatic counting system. The user can set a number to count.
7.Accurate color tracking system, color errors automatically shut down.
8.The machine has automatic counting system.
|Bag Length（H）||90-400 mm|
|Bag Width（L）||70-220 mm|
|Gusset Depth（S）||0-60 mm|
|Standard Flap（P）||15-18 mm|
|Paper Thickness||30-80 gsm|
|Paper Roll Width||180-680 mm|
|Max.Roll Diameter||1100 mm|
|Reel Inner Diameter||76 mm|
|Pasted With Film||YES|
|Coating Way||Hot-melt glue spraying system、coated with cold glue|
|Film Thickness||0.03-0.05 mm|
|Film Width||50-220 mm|
|The Max Film Diameter||500 mm|
|Film Inner Diameter||76 mm|
|Total Power||10 kw|
|Weight of Machine||3800 kg|
|Overall Dimension(LxWxH)||5850×1400×1650 mm|
Man-machine interface touch screen
Hot-melt glue spraying system
Automatic constant tension and rectify deviation systems
High speed servo puncturing system
Automatic counting system
Color mark tracking system
Machine speeds dependent on paper & adhesive qualities, bag dimensions, operator knowledge, and general work philosophy.
