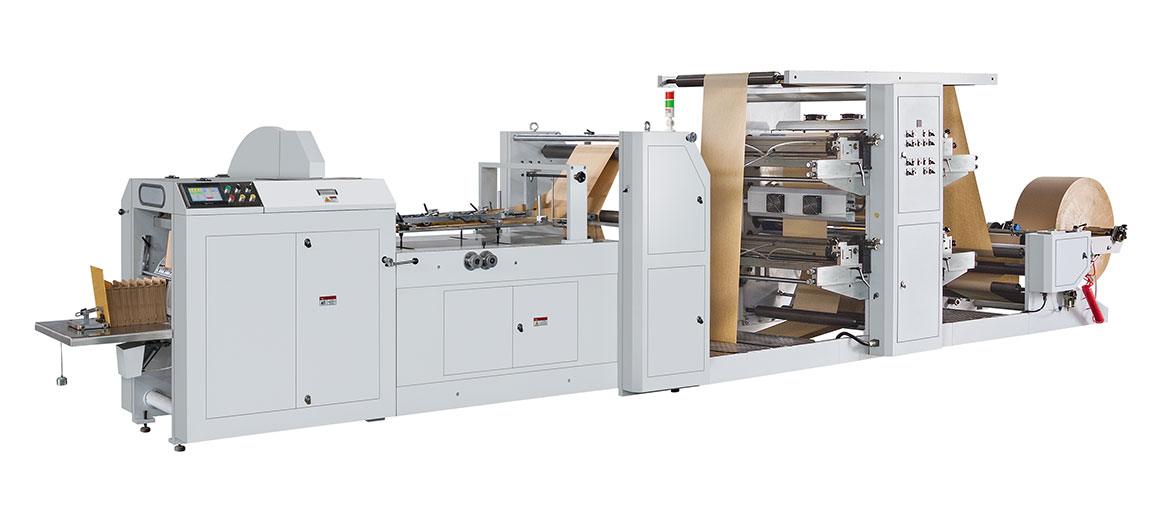

LMD-600 YT4800 Kraft Paper Bag Making Machine with Printing inline

LMD-600 YT4800 Kraft Paper Bag Making Machine with Printing inline

Working Flow Chart - Unwinder paper rolls feeding -epc -auto tension -Side Glue -Photocell-Forming tube-Gusset -Pulling paper -Cutting -V shape forming -Bottom glue -Finished v bottom paper bags

The human-machine touch screen interface, the work condition can be shown in real- time.Equipped with accurate servo motor drive, it makes the machine run steadily and efficiently.

Introduction:

LMD-600+YT-4800 Automatic High Speed Paper Bag Machine With Flexo Printing Machine forming the paper bag in one process from roll paper, printing, edge folding, tube forming, cutting, gluing, bottom folding,bottom gluing and finishing bag Easy operation, low power consumption, high efficiency. It is an ideal machine for producing food bags like bread bags, KFC bags and Mcdonald’s bags.

Features:

1.The human-machine touch screen interface, the work condition can be shown in real- time.
2.Equipped with accurate servo motor drive, it makes the machine run steadily and efficiently.
3.Material lifting adopt pneumatic lift structure.
4.Automatic constant tension control system. The tension will be just right from beginning to end.
5.Double photoelectric sensor limit automatic correction control system and deviation rectification stability, energy saving, long life.
6.The machine has automatic counting system. The user can set a number to count.
7.Accurate color tracking system, color errors automatically shut down.
8.Automatic lubricating oil supply system.
9.accurate colour register.
10.Lift and lower the printing plate cylinder Automatic, it will automatically stir the printing ink after lifting.
11.The printing ink is spread by the knurled cylinder with even ink colour.
12.automactic papper bag making machine
13. Ruian Lilin Fully Automatic Paper Bag Making Machine With Printing Machine

Technical Parameter:

Type

LMD-600+YT-4800

Cutting Length(C)

230-625 mm

Bag Length(H)

225-620 mm

Bag Width(L)

70-280 mm

Gusset Depth(S)

0-50 mm

Standard Flap(P)

12-20 mm

Max.Speed

400 pcs/min

Paper Thickness

30-80 gsm

Paper Roll Width

220-700 mm

Max.Roll Diameter

1000 mm

Reel Inner Diameter

76 mm

Printing Color

4 Color

Printing Width

720 mm

Printing Length

200-800 mm

Max.Printing Speed

80 m/min

Overprint Precision

±0.2 mm

Thickness of Plate

2.38 mm

Total Power

9 kw

Weight of Machine

4800 kg

Overall Dimension(LxWxH)

7700×1650×1850 mm

Detailing Description

Man-machine interface touch screen
Adopt touch screen and PLC programmable control system, the work condition can be shown real time.Cooperate with the ultra precise double servo motor, the stability can be guaranteed.

Automatic counting system
The machine has automatic counting system. The user can set a number to count.When bag quantity meets the number, the bag will be jumped out like the picture shows.

Color mark tracking system
Precise color mark tracing system can make sure precision of bag printing pattern cutting position.The color mark tracing function can avoid the readjustment after paper reel changing, paper web breaking, or power outage.The machine can stop automatically when the color mark is error. It will save time and reduce the waster rate.

Bag bottom gluing structure

Lower glue tank structure can use the glue directly. The glue doesn’t need glue thickener to increase viscosity.The structure can improve efficiently the phenomenon that the high viscosity glue makes bag bottom fold.The gluing will be evener. Solve the problem that the upper glue tank structure leaks glue when the machine run with slow speed.

The paper tube forming system
The paper tube forming system can be adjusted as a whole. It can increase the work efficiency and stability;reduce the waster rate during the producing; and save time of adjusting.

Pneumatic paper reel lifting device
Pneumatic paper reel lifting device make paper reel changing easy. Press one switch and the paper reel will be lifted automatically.Avoid the personal injury. The pneumatic lifting system can make sure the stability of paper web feeding and avoid moving the feeding stand.
