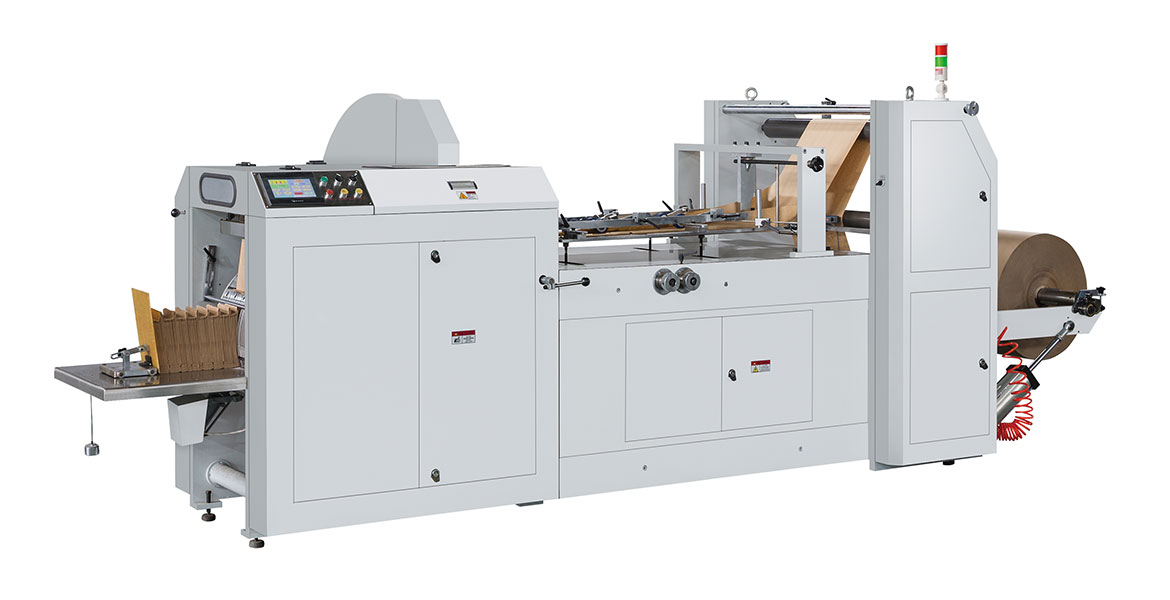

LMD-400G Automatic High Speed Paper Bag Making Machine

Introduction：

This machine forming the paper bag in one process from roll paper, edge folding, tube forming, cutting, gluing, bottom folding,bottom gluing and finishing bag Easy operation, low power consumption, high efficiency. It is an ideal machine for producing food bags like bread bags, KFC bags and Mcdonald’s bags.

Features：

1.Adopting frequency converter stepless speed regulation.
2.Independent glue coating system, the glue coating system can be run independently after the machine stops.
3.The integral paper tube forming adjustment structure can be adjusted at the same time with one side or two sides.
4.Material lifting adopt pneumatic lift structure.

Technical Parameter：

Type	LMD-400G
Cutting Length（C）	150-460 mm
Bag Length（L）	140-450 mm
Bag Width（W）	70-280 mm
Gusset Thickness（H）	0-120 mm
Standard Flap（P）	12-20 mm
Max.Speed	500 pcs/min
Paper Thickness	30-80 gsm
Paper Roll Width	220-700 mm
Max.Roll Diameter	1100 mm
Reel Inner Diameter	76 mm
Total Power	4 kw
Weight of Machine	2800 kg
Overall Dimension(LxWxH)	4520×1550×1500 mm

Note：
Machine speeds dependent on paper & adhesive qualities, bag dimensions, operator knowledge, and general work philosophy.

Detailing Description

Frequency control of motor speed
Adopting frequency converter stepless speed regulation, the acceleration and deceleration smooth control is simple.

Independent glue coating system
Independent glue coating system, the glue coating system can be run independently after the machine stops, avoiding the glue drying and not easy to clean. The glue tank is glued to the bottom to prevent glue from dripping.

Safety shield
Cutter safety shield protection switch can avoid the danger that user forgets to close the shield when machine runs with high speed.

The paper tube forming system
The integral tube forming adjustment structure can be adjusted at the same time on one side or both sides to improve work efficiency, reduce the scrap rate generated by the adjustment process, and save adjustment time and stability of adjustment.

Lateral adjustment of monolithic material
The lateral adjustment of the monolithic material is manually adjusted by the screw, and the lateral trimming of the material is simple and fast.
