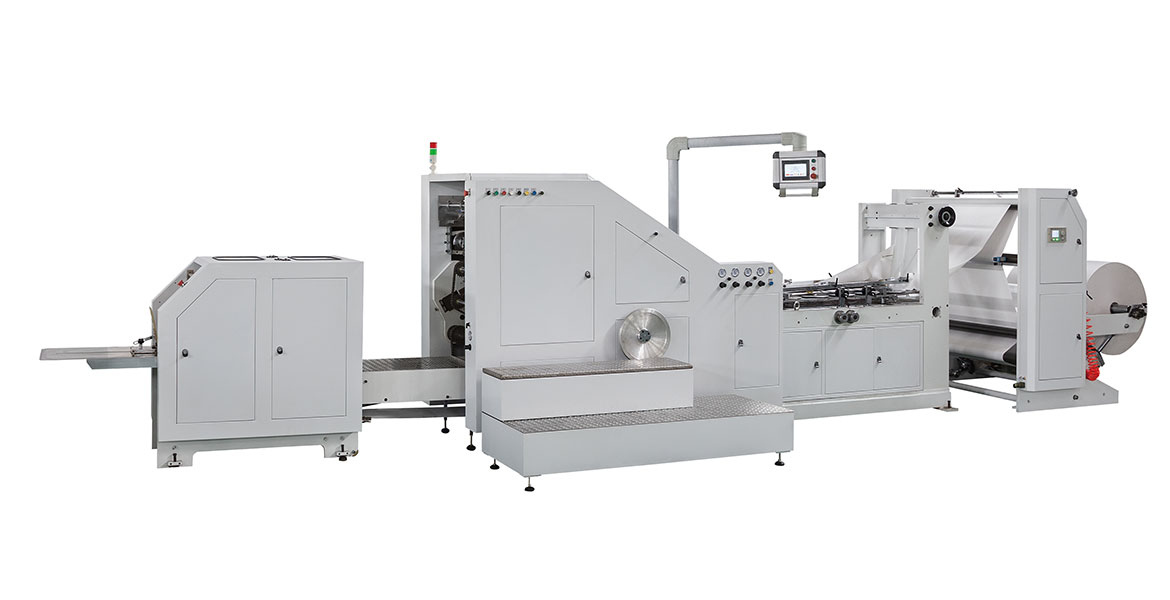

LSB-450XL Roll Feeding Square Bottom Paper Bag Making Machine

LSB-450XL Roll Feeding Square Bottom Paper Bag Making Machine

Roll Feeding square bottom paper bag making machine forming the paper bag in one process from printed or unprinted  roll paper , side gluing, roll folding,  roll paper cutting, bottom folding, bottom gluing, bottom forming, bag formation at a stroke. This machine controls by PC programmable servo motor through the human-machine touch screen interface. It can produce various of specifications paper bags. This machine have advantages of high speed, quickly replace the paper bag specifications, more wide range adjusting etc. It is an ideal machine for producing food bag, shopping handles bag.

1.The human-machine touch screen interface, the work condition can be shown in real- time.
2.Equipped with accurate servo motor drive, it makes the machine run steadily and efficiently.
3.Material lifting adopt pneumatic lift structure.
4.Automatic constant tension control system. The tension will be just right from beginning to end.
5.Double photoelectric sensor limit automatic correction control system and deviation rectification stability, energy saving, long life.
6.Thumb buttons, appressed bottom cutting device, bag type have many choices.
7.Don't stop machine adjust double bottom structure, the adjustment will become more intuitive, more simple, more time saving.
8.Glue roller air defense coating control, avoid gluing on besmear brushs hub surface directly, reduce unnecessary trouble.
9.Accurate color tracking system, color errors automatically shut down.
10.Automatic lubricating oil supply system.

Technical Parameter:

Type LSB-450XL
Bag Width(W) 260-450 mm
Bottom Size(H) 100-210 mm
Bag tube length(C) 450-820 mm
Bag Length(L) L=C-(H÷2+15~25)
Max.Speed 120 pcs/min
Paper Thickness 80-180 gsm
Paper Roll Width 750-1250 mm
Max.Roll diameter 1200 mm
Reel inner diameter 76 mm
Total Power 11 kw
11 Kw
Weight of Machine 7500 kg
Overall Dimension(LxWxH) 9200×2150×1950

Machine speeds dependent on paper & adhesive qualities, bag dimensions, operator knowledge, and general work philosophy.

Detailing Description

Man-machine interface touch screen
Adopt touch screen and PC control system, the work condition can be shown real time. Cooperate with the ultra precise servo motor, the stability can be guaranteed.

Automatic counting system
The machine has automatic counting system. The user can set a number to count. When bag quantity meets the number, the bag will be jumped out like the picture shows.

Automatic glue supply system at the bottom
Automatic glue supply system is adopted for glue coating at the bottom. If the amount of glue in the glue tank is insufficient, the glue will be supplied automatically. When the machine stops, the rubber roller will run automatically to avoid glue solidification after the machine stops.

Color Mark Tracking System
Precise color mark tracing system can make sure precision of bag printing pattern cutting position. The color mark tracing function can avoid the readjustment after paper reel changing, paper web breaking, or power outage. The machine can stop automatically when the color mark is error. It will save time and reduce the waster rate.

The compact design of mechanical transmission

The compact design of mechanical transmission, ensure that the material is passed stable, accurate, improving mechanical properties, producing paper bags better appearance, neat.

monolithic cylinder-forming adjusting structure

monolithic cylinder-forming adjusting structure greatly saves time,improve working effciency,and enhance stability of adjustment.
