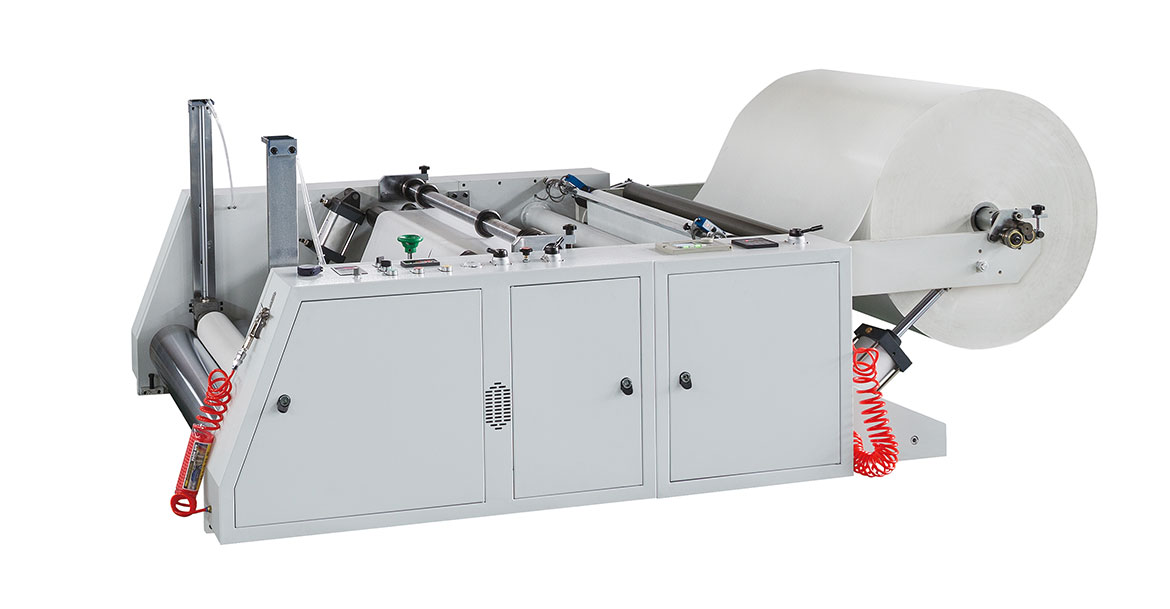

LSQ Series High-speed Slitting Machine

LSQ Series High-speed Slitting Machine

This machine is suitable for cutting and rewinding all kinds of rolls, such as kraft paper, white card paper, coated paper, silicone paper, PVC plastic, non-woven materials and other rolls.

1.The machine adopts frequency conversion speed regulation to maintain balanced operation in acceleration..
2.Double photoelectric sensor limit automatic correction control system and deviation rectification stability, energy saving, long life.
3.Adopt the longitudinal cutting method of circular knife, and the fan will automatically discharge the waste.
4.Automatic constant tension control system. The tension will be just right from beginning to end.
5.Material lifting adopt pneumatic lift structure.

 Technical Parameter:

Type LSQ-700 LSQ-1100 LSQ-1400
Max.Width Unwinding 700mm 1100mm 1400mm
Max.Diameter Unwinding 1100mm 1200mm 1200mm
Max.Diameter Rewinding 1200mm 1200mm 1200mm
Paper Thickness 30-350gsm 30-350gsm 30-350gsm
Max.Speed 260m/min 260m/min 260m/min
Total Power 4.5kw 4.5kw 4.5kw
Weight of Machine 1500kg 1800kg 2000kg
Overall Dimension(cm) 260x175x185 260x215x185 260x245x185
